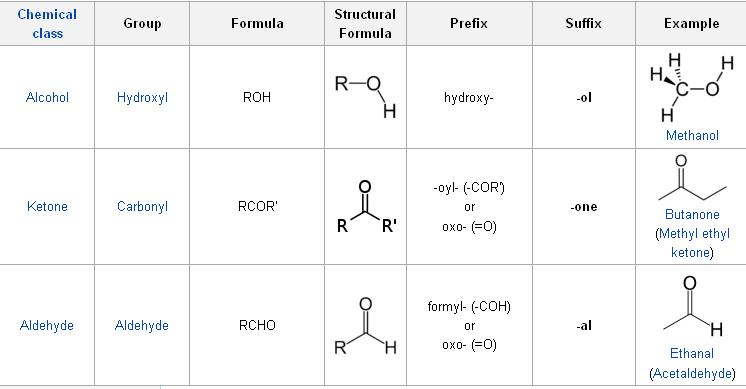

Functional Groups



• Alcohols, Halides,Ethers, and Keytones
• Organic Compounds can contain elements other than C and H, these are known as Functional Groups
• Carbon Chain without functional groups are written R-OH
• There are 9 different functional groups

1. Alcohols
2. Ketones
3. Amines
4. Halides
5. Carboxylic Acids
6. Amides
7. Aldehydes
8. Esthers
9. Esters

I) Alcohols

• is a hydrocarbon with a -OH bonded to it
• Parent ends with -ol
• Ie: 2 methyl 3 pentaol, 2 ethyl 2,3 dimethyl 1 butanol
•  If there is more than 1 -OH bonded, ending becomes (-diol,triol.tec)
• IE. 1 2 Ethandiol

II) Halides

• Groups 7 [F CL Br I ]
• Floro/Chloro/Bromo/Ido
• IE) 4 ethyl 2 methyl 1 bromo cyclohexane

III) Keytones

• a double bonded oxygen
• add -one to ending

IV) Aldehydes

• doubled bonded oxygen
• add -al to ending
• simplest form is "Formaldehyde"

Methanol= "Formaldehyde"

V) Carboxylic Acids

• Change the parent chain to -oic acid
• Simplest form  Methanoic Acid

 VI) Ethers

• Oxygen group connected to two alkyl
• 2 carbon chains connected by O2
• Names the smallest 1st
• Name the 2nd alkyl followed by the ether
• Dimethyl Ether

Aromatic Nomenclature

• A benzene molecule is given a special diagram to show it's unique bond structure
• Benzene can be a parent chain or a side chain
• If it is a side chain benzene is called Phenyl





Phenyl

Alicylics & Aromatics

 A) Alicylics

• Carbon chains can form 2 types of closed loops
• Alicylics are loops that are usually made with single bonds
• If the parent chain is a loop standard naming rules apply with one addition:

==>"Cyclo" is added in front of the parent chain

• There are 3 different ways to draw compounds:

   Example: Cyclopentane

                1) Complete structural diagram



2) Condensed structural diagram



3) Line diagram

• Numbers can start anywhere and can go C.W or C.C.W on the loop
• The Side chain numbers must be the lowest possible
• Loops can also be side chains
• The side chain though, is given the "cyclo" prefix
• IE: 2 Cyclobutyl Octane

B) Aromatics

• Benzene(C6H6) is a cyclic hydrocarbon with unique  bonds between the carbon atoms
• Structurally it can be drawn with alternating double bonds
• Analysis shows that all six carbon bonds are identical and really represents a 1.5 bond
• This is due to the e- resonance
• e- are free to move all around the ring.

Benzene

Benzene (Lines represent double bonds)

Polar Molecules

• Have an overall charge separation
• Unsymmetrical Molecules are usually polar
• Molecular Dipoles are results of unequal sharing of electrons in a molecule



Non Polarity

A) Predicting Polarity

If a molecule is symmetrical the pull of e- is usually balanced

Molecules can be unsymmetrical in two ways:

1) Different Atoms

2) Different number of atoms

Bonding ===>Bonds and Electronegativity

Three types of Bonds

1.Ionic (Metal)-Nonmetal)

• e- are transferred from metal to non-metal

2.Covalent (Non-metal ==> nonmetal)

• e-  are shared between non-metals

3. Metallic (Metal)
Holds pure metals together by electrostatic attraction

A) Electronegativity:
Electronegativity (en) is a measure of an atom's attractions for electrons in a bond

• Fluorine = 4.0 (the most en)
• Chlorine = 3.0
• Cesium = 0.8

--------------------------------------------------------------------------------------------------------------

• Atoms with greater en attracts e- more.
• Polar Covalent: Bonds form from an unequal sharing of e- (H2O)
• Non-Polar Covalent: Bonds  form from equal sharing

------------------------------------------------------------------------------------------------------------
B) Bonds
The type of bond formed can be predicated by looking at the difference in Electronegativity(en) of elements.
  en > 1.7 = Ionic Bonds
  en < 1.7 = Polar Covalent
  en = 0 is non polar

< = Less than
> = Greater than

Acid-Base Reactions (Strong Acids & Strong Bases)

• Strong Acids (SA0 dissociate to produce H+ ions.
• H+ions make something acidic
• HCL, H2SO4, HCLO4
• Strong Bases (SB) dissociate to produce off ions.
• NaOH, Ba(OH), LiOH,  (NH3+H2O --->NH4+OH)
• When a SA and SB mix they form Water (H2O) and Ionic Salt.
• Total Volume Changes

pH and pOH

• pH measures of the hydrogenions present in a solution
• pH= -log[H+]
• pOH is measure if the hydroxide ions present in a solution
• pOH= -log[OH-]

More Functional groups

CARBOXYLIC ACIDS
- carboxylic acids are formed by the function group:

- use standard rules but change the parent chain ending to -oic
- the simplest carboxylic acid is methanoic acid


ETHERS
- an ether contains an oxygen group connected to two alkyl (carbon) chains

- name the small alkyl group first, then the second alkyl group followed by ether.

some examples of ethers

1) dimethyl ether:

2) propyl hexyl ether:
CH3-CH2-CH2-O-CH2-CH2-CH2-CH2-CH2-CH3

3) diphenyl ether:

Alkenes & Alkynes

-Carbon can form double & triple bonds with carbon atoms
-When multiple bonds form fewer hydrogens are attached to the carbon atom
-Naming rules are almost the same as with Alkanes
                - The position of the double/triple bonds always has
                  the lowest number and is put in front of the parent chain

-Double bonds (Alkenes) end in -ene
-Triple bonds (Alkynes) end in -yne





TRANS & CIS BUTENE



-If two adjacent carbons are bonded by a double bond AND have side chains on them two possible compounds are possible



MULTIPLE DOUBLE BONDS



-More than one double bond can exist in a molecule
-Use the same multipliers inside the parent chain

Organic Chemistry ------- Nomeclature

Organic chemistry is the study of carbon compounds
                  - carbons form multiple covalent bonds

Carbon compounds can form chains, rings or branches
                 - There are less than 100 000 non-organic compounds
                 - organic compounds numbers more than 17, 000, 000

-The simplest organic compounds are made of carbon & hydrogen
-Saturated compounds have no double or triple bonds
-Compounds with only single bonds are called Alkanes and always end in -ane
-3 categories of Organic compounds
                 1) Straight chains
                 2) Cylic chains
                 3) Aromatics

STRAIGHT CHAINS
rules for naming:
1. Circle the longest continuous chain and name this as the base chain
            - meth, eth, prop...
2. Number the base chain so side chains have the lowest possible numbers
3. Name each side chain using the -yl ending
4. Give each side chain the appropriate number
          - if there is more than one side chain, numbers / labels
            are slightly different
5. List side chains alphabetically.
----------------------------------------------------------------------------------------------------------
Uses of Alkanes
The most useful and numerous in world
C1-C4  are used as gaseous fuels (Butane Lighter)
C5-C6 are solvents (Paint Thinner)
C5-C9 are car fuel
C10-C16 Jet Fuel and diseal
C18-C20 Motor Oil
C21-C40 Wax

Titrations

A titration is an experimental technique used to determine the concentration of an unknown solution.

A) Buret: Contains the known solutions used to measure how much is added
B) Stopcock: Value used to control the flow of solution from the buret.

C) Pipet: Used to accurately measured the volume of unknown solution

D) Erleameyer Flask: Container for unknown solution

E) Indicator: Used to identify the end point of titration

F) Stock Solution: known  as solution

Example: Determine the concentration of a sodiunm Hydroxide sample so he does a titration with HCL. He gathers the following data. Use the info to determine [NaOH]

Volume Used:
13.1+12.7+12.8+12.8/4= 12.85ml
